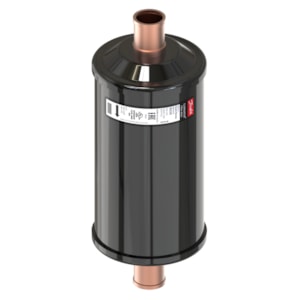

PHIN LỌC DANFOSS DML-419S (Steel Cu-plated, 28mm) - C/N 023Z4597

Gross weight

2.012 Kilogram

Net weight

1.742 Kilogram

Volume

2.735 Liter

EAN

5702428108362

Acid capacity [g]

3.28 g

Acid capacity [oz]

0.116 oz

Activated alum/Molec sieve [%]

0% / 100%

Activated alumina [%]

0 %

Approval

UL

Body material

Steel

Braket

No

Brand

ELIMINATOR

China RoHS compliance

Yes exceed limitations

Connection material

Steel Cu-plated

Core

Solid core

Core Size code

41 cu.in.

Core type

Solid core

Drying Cap[Drops of Water]24°C

R134a: 1522
R290: --
R32: 1281
R404A: 1585
R407C: 1478
R410A: 1377
R507: 1660

Drying Cap[Drops of Water]52°C

R134a: 1393; R290: --; R32: 1179; R404A: 1501; R407C: 1362; R410A: 1225; R507: 1493

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a)

Filter application

High Moisture Capacity

Flow capacity [kW]

R134a: 88.9; R290: -- ; R32: 135.6; R404A: 62.6; R407C: 91.2; R410A: 92.6; R507: 60.7

Flow capacity [TR]

R134a: 25.3; R290: --; R32: 38.5; R404A: 17.8; R407C: 25.9; R410A: 26.3; R507: 17.3

Flow direction indicator

Label printed 1-way arrow

Fluid Group

2

In scope of WEEE and contain batteries

No

Inlet connection size [mm]

28 mm

Inlet connection type

Solder, ODF

LiqCap Cond (ARI 710-2009)[SI]

Delta p=0.07bar; tliq= 30°C; tvap=-15°C

LiqCapCond (ARI 710-2009)[IMP]

Delta p=1psi; tliq= 86°F; tvap=5°F

Lubricants compatibility

Oilfree applications

Max. Working Pressure [bar]

46 bar

Max. Working Pressure [psig]

667 psig

Molecular sieve [%]

100 %

Net volume [foz US]

20.97 Fluid Ounce US

Net volume [l]

0.62 L

Oil free refrigerants

R1234ze(E); R134a; R513A; R515A

Outlet connection size [mm]

28 mm

Outlet connection type

Solder, ODF

Packing format

Multi pack

PED category

Art. 4, par. 3

Product description

Liquid line filter drier

Product group

Filter driers

Product Name Description

Hermetic filter drier

Quantity per packing format

8 pc

REACH Candidate List substances

No

Refrigerants

R1233zd(E); R125 ; R134a; R22/R407C; R23; R404A; R407A; R407F; R407H; R410A; R422B; R422D; R438A; R448A ; R449A ; R449B; R452A; R454A; R454C ; R455A; R463A; R507A; R513A; R515B; R516A

Serviceable

No

Shell volume [foz US]

32.98 Fluid Ounce US

Shell volume [l]

0.97 L

Solid core surface [cm2]

415 cm²

Solid core surface [in2]

64.26 in²

Solid core volume [cm3]

355 cm³

Solid core volume [in3]

21.69 in³

Temperature range [°C] [max]

70 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

160 °F

Temperature range [°F] [min]

-40 °F

Type

DML

Type designation

DML 419S

UK RoHS compliance

Out of scope

UL approval file name

SA6398

UL approved refrigerants

R125; R134a; R22; R23; R404A; R407A; R407C; R407F; R410A; R422B; R422D; R438A; R448A; R449A; R449B; R452A; R507A; R513A

UL evaluated

Yes
