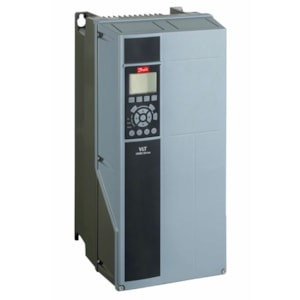

BIẾN TẦN DANFOSS VLT AUTOMATION DRIVE FC-302P15KT5E55H1XGXXXXSXXXXA0BXCXXXXD0 - C/N 131B3284

Gross weight

22.44 kg

Net weight

21.49 kg

Volume

144.67 l

EAN

5702427224650

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

302

302

Power Rating

P15K

(P15K) 15 KW / 20 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E55

IP55 / Type 12

RFI Filter

H1

(H1) RFI Class A1/B (C1)

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

A0

PROFIBUS DP MCA 101

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

D0

MCB-107 24V DC backup

Frame Size

B1

B1

Typecode Part 1

FC-302P15KT5E55H1XGX

Typecode Part 2

XXXSXXXXA0BXCXXXXD0

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

15

Power 110% (NO) [KW]

18.5

Height [mm]

494,0

Width w/ no C options [mm]

243,0

Depth [mm]

261,0

Depth with Option A/B [mm]

261,0

kVA

22.2

Power Loss NO [W]

465

Power Loss NO [W]

465

Power Loss HO [W]

379

Power Loss HO [W]

379

Continuous Current (NO) [A]

37.5

Intermittent Current (NO) [A]

41.2

Continuous Current (NO) [A]

34

Intermittent Current (NO) [A]

37.4

Continuous Current (HO) [A]

32

Intermittent Current (HO) [A]

51.2

Continuous Current (HO) [A]

27

Intermittent Current (HO) [A]

43.2

Calculated Gross Weight [kg]

22.44

Calculated Net Weight [kg]

21.49

ECCN EU

Y901

ECCN US

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P15KT5E55H1XGX

Modelcode02

XXXSXXXXA0BXCXXXXD0

Recommended Plant

ERR01
