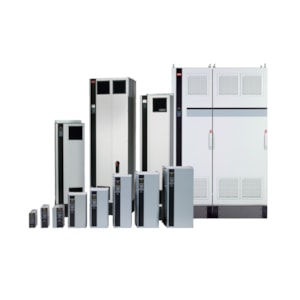

BIẾN TẦN DANFOSS VLT AUTOMATION DRIVE FC-302P11KT5E20H2XGXXXXSXXXXANBXCXXXXDX - C/N 131L6721

Gross weight

11.26 kg

Net weight

10.24 kg

Volume

57.75 l

EAN

5702427775701

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

302

302

Power Rating

P11K

(P11K) 11 KW / 15 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AN

EtherNet/IP MCA 121

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

B3

B3

Typecode Part 1

FC-302P11KT5E20H2XGX

Typecode Part 2

XXXSXXXXANBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

11

Power 110% (NO) [KW]

15

Height [mm]

399,0

Width w/ no C options [mm]

165,0

Width w/ two C options [mm]

225,0

Depth [mm]

249,0

Depth with Option A/B [mm]

262,0

kVA

16.6

Power Loss NO [W]

392

Power Loss NO [W]

392

Power Loss HO [W]

291

Power Loss HO [W]

291

Continuous Current (NO) [A]

32

Intermittent Current (NO) [A]

35.2

Continuous Current (NO) [A]

27

Intermittent Current (NO) [A]

29.7

Continuous Current (HO) [A]

24

Intermittent Current (HO) [A]

38.4

Continuous Current (HO) [A]

21

Intermittent Current (HO) [A]

33.6

Calculated Gross Weight [kg]

11.26

Calculated Net Weight [kg]

10.24

ECCN EU

Y901

ECCN US

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P11KT5E20H2XGX

Modelcode02

XXXSXXXXANBXCXXXXDX

Recommended Plant

ERR01
