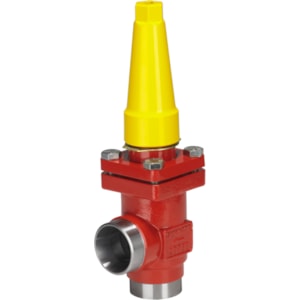

VAN ĐIỀU ÁP GÓC DANFOSS REG-SB 20, Steel - C/N 148B5303
Product details
|
Gross weight |
1.926 Kilogram |
|
Net weight |
1.651 Kilogram |
|
Volume |
4.072 Liter |
|
EAN |
5702428473668 |
|
Approval |
CE; CRN; EAC; LLC CDC TYSK; UKCA |
|
Body material |
Steel |
|
Brand |
SVL Flexline |
|
CE evaluated |
Yes |
|
China RoHS compliance |
Out of scope |
|
Colour Paint |
Reddish brown |
|
Connection material |
Steel |
|
Connection standard |
ASME B 36.10M SCHEDULE 80 |
|
Cv value [gal/min] |
5.8 gal/min |
|
Direction |
Angleway |
|
Equipment |
Cap |
|
EU RoHS compliance |
Out of scope |
|
Flow area [in2] |
0.178 in² |
|
Flow area [mm2] |
115 mm² |
|
Flow direction indicator |
Embossed 1-way arrow |
|
Fluid Group |
1 |
|
In scope of WEEE and contain batteries |
No |
|
Inlet connection size [in] |
3/4 in |
|
Inlet connection size [mm] |
20 mm |
|
Inlet connection type |
Butt weld |
|
Kv value [m³/h] |
5 m³/h |
|
Max. Working Pressure [bar] |
52 bar |
|
Max. Working Pressure [psig] |
754 psig |
|
Neck |
Standard |
|
Outlet connection size [in] |
3/4 in |
|
Outlet connection size [mm] |
20 mm |
|
Outlet connection type |
Butt weld |
|
Packing format |
Single pack |
|
Parts Program name |
REG-SA / REG-SB |
|
PED category |
Art. 3, par. 3 |
|
Product accessories |
SVL Flexline accessories |
|
Product description |
Hand Regulating Valve |
|
Product group |
Shut-off and regulating valves |
|
Product Name Description |
Hand operated regulating valve |
|
Quantity per packing format |
1 pc |
|
REACH Candidate List substances |
Lead (CAS no. 7439-92-1) |
|
Refrigerants |
R134a; R22; R290; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R600; R600a; R717; R744; R507A; R1234yf; R1234ze(E); R125; R152a; R227ea; R236fa; R245fa; R32; R407H ; R413A; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B ; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R512A; R513A; R513B; R515A; R515B; R516A; R170; R452C |
|
Serviceable |
SVL Flexline spare parts |
|
Temperature range [°C] [max] |
150 °C |
|
Temperature range [°C] [min] |
-60 °C |
|
Temperature range [°F] [max] |
302 °F |
|
Temperature range [°F] [min] |
-76 °F |
|
Type |
REG-SB 20 |
|
UK RoHS compliance |
Out of scope |
|
Valve version |
Standard version |
