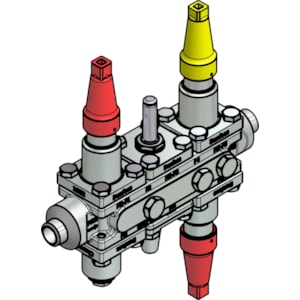

VAN DANFOSS ICF 20-6-1RA, 20 mm, Connection standard: ASME B 36.10M SCHEDULE 80 - C/N 027L3004

Gross weight

10.081 Kilogram

Net weight

9.515 Kilogram

Volume

28.065 Liter

EAN

5702428240741

Approval

CE ; EAC ; LLC CDC TYSK ; TÜV ; UL ; UKCA

Body material

Steel

CE evaluated

Yes

China RoHS compliance

Out of scope

Connection material

Steel

Connection size [in]

3/4 in

Connection size [mm]

20 mm

Connection standard

ASME B 36.10M SCHEDULE 80

Connection type

Butt weld

Direction

Straightway

Equipment

Cap

EU RoHS compliance

Out of scope

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

In scope of WEEE and contain batteries

No

Max. Working Pressure [bar]

52 bar

Max. Working Pressure [psig]

754 psig

Module 1

Stop valve

Module 1 type

ICFS 20

Module 2

Filter

Module 2 type

ICFF 20

Module 3

Solenoid valve

Module 3 type

ICFE 20

Module 4

Manual opening

Module 4 type

ICFO 20

Module 5

Manual regulating valve

Module 5 type

ICFR 20A

Module 6

Stop valve

Module 6 type

ICFS 20

Packing format

Single pack

PED category

II

Product accessories

ICF accessories

Product description

Control Solution

Product group

Multifunction valves

Product Name Description

Valve station

Quantity per packing format

1 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R134a; R22; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R409A; R410A; R421A; R502; R717; R744; R507A; R1234yf; R1234ze(E); R125; R227ea ; R236fa; R245fa; R32; R407H; R417A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R513A; R513B; R515A ; R515B; R516A

Serviceable

ICF spare parts

Side port connection size [in]

3/8 in

Side port connection type

G

Side port placement

P2-P4-P5-P7-P9-P10

Side port quantity [pc]

6 pc

Surface coating

Zn (TLP)

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

Type

ICF 20-6-1RA

Type code ICF

ICF-20-6-20ASXFXEXOXRASX61XX

UK RoHS compliance

Out of scope

UL evaluated

Yes
