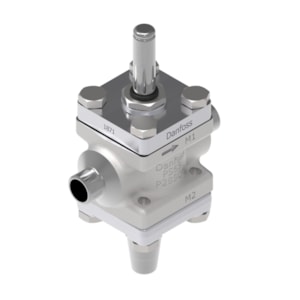

VAN DANFOSS ICF 20-2-121, 15 mm, Connection standard: ANSI B 36.10 - C/N 027L3801

Gross weight

3.066 Kilogram

Net weight

2.55 Kilogram

Volume

17.6 Liter

EAN

5702424545130

Approval

EAC ; LLC CDC TYSK ; TÜV ; UL

Body material

Steel

China RoHS compliance

Out of scope

Connection material

Steel

Connection size [in]

1/2 in

Connection size [mm]

15 mm

Connection standard

ANSI B 36.10

Connection type

Butt weld

Direction

Straightway

EU RoHS compliance

Out of scope

Flow direction indicator

Embossed 1-way arrow

Fluid Group

1

In scope of WEEE and contain batteries

No

Max. Working Pressure [bar]

65 bar

Max. Working Pressure [psig]

943 psig

Module 1

Solenoid valve

Module 1 type

ICFE 20

Module 2

Manual opening

Module 2 type

ICFO 20

Packing format

Single pack

PED category

Art. 4, par. 3

Product accessories

ICF accessories

Product description

Control Solution

Product group

Multifunction valves

Product Name Description

Valve station

Quantity per packing format

1 pc

Refrigerants

R1234yf ; R1234ze(E); R125; R134a; R152a; R22; R227ea; R236fa; R245fa; R32; R401A; R402A; R404A; R407A; R407B; R407C; R407F; R407H; R409A; R410A; R413A; R417A; R421A; R422A; R422B; R422D; R438A; R442A; R444B; R447A; R447B; R448A; R449A; R449B; R450A; R452A; R452B; R454A; R454B; R454C; R455A; R463A; R502; R507A; R512A; R513A; R513B; R515A; R515B; R516A; R717; R744

Serviceable

ICF spare parts

Surface coating

Zn (TLP)

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

-76 °F

Type

ICF 20-2-121

Type code ICF

ICF-20-2-15AEXOXXXXXXXXX0LAX

UK RoHS compliance

Out of scope

UL evaluated

Yes
