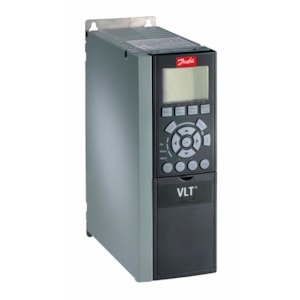

BIẾN TẦN DANFOSS VLT AUTOMATION DRIVE FC-302P3K0T5E20H2XGXXXXSXXXXANBXCXXXXDX - 3.0 KW - C/N 131L7357

Gross weight

4.71 kg

Net weight

4.19 kg

Volume

21.569 l

EAN

5702427782259

Product View (Switch)

GLBL

Global (Standard)

Product Group

FC-

VLT® AutomationDrive FC-

Series

302

302

Power Rating

P3K0

(P3K0) 3.0 KW / 4.0 HP

Phase

T

Three phase

Mains Voltage

5

380 - 500 VAC

Enclosure

E20

(E20) IP20 / Chassis

RFI Filter

H2

RFI Filter

Brake - Safe Stop

X

No brake chopper

LCP

G

Graphical Loc. Cont. Panel

Coating PCB

X

Not coated PCB

Mains Option

X

No Mains Option

Adaptation A

X

Standard Cable Entries

Adaptation B

X

No adaptation

Software Release

SXXX

Latest release std. SW.

Software Language Pack

X

Standard Language Pack

A Option

AN

EtherNet/IP MCA 121

B Option

BX

No B Option

C0 Option MCO

CX

No C0 option

C1 Option

X

No C1 option

C Option Software

XX

No software option

D Option

DX

No D option

Frame Size

A2

A2

Typecode Part 1

FC-302P3K0T5E20H2XGX

Typecode Part 2

XXXSXXXXANBXCXXXXDX

Product Catalog

NO_VIEW

NO VIEW

Power 160% (HO) [KW]

3

Height [mm]

268,0

Width w/ no C options [mm]

90,0

Width w/ two C options [mm]

150,0

Depth [mm]

205,0

Depth with Option A/B [mm]

220,0

kVA

4.99

Power Loss HO [W]

116

Power Loss HO [W]

116

Continuous Current (HO) [A]

7.2

Intermittent Current (HO) [A]

11.5

Continuous Current (HO) [A]

6.3

Intermittent Current (HO) [A]

10.1

Calculated Gross Weight [kg]

4.71

Calculated Net Weight [kg]

4.19

ECCN EU

Y901

ECCN US

3A999.a

Vendor

ERR01

Cannot Determine Vendor

Recommended Factory

ERR01

Cannot Determine Vendor

Modelcode01

FC-302P3K0T5E20H2XGX

Modelcode02

XXXSXXXXANBXCXXXXDX

Recommended Plant

ERR01
