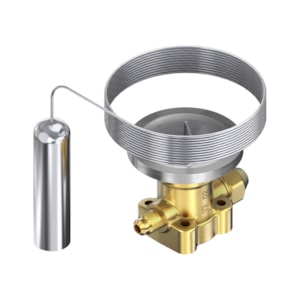

VAN TIẾT LƯU DANFOSS TE 5, R452A - C/N 067B3602

Gross weight

0.559 Kilogram

Net weight

0.488 Kilogram

Volume

1.663 Liter

EAN

5702428523066

Approval

EAC; LLC CDC TYSK

Body material

Brass

Capillary tube length [in]

118 in

Capillary tube length [mm]

3000 mm

China RoHS compliance

Yes

Equalization connection type

Flare

Equalization size [in]

1/4 in

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE and contain batteries

No

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

400 psig

MOP Point [psig]

MOP 20

MOP Point [°C]

-20 °C

MOP Point [°F]

-5 °F

Packing format

Multi pack

Parts Program name

TE 5

Pressure equalization

Externally equalized

Product group

Expansion valves

Product Name Description

Element for expansion valve

Quantity per packing format

12 pc

Refrigerants

R452A

Temperature range [°C] [max]

-25 °C

Temperature range [°C] [min]

-60 °C

Temperature range [°F] [max]

-15 °F

Temperature range [°F] [min]

-75 °F

Type

TE 5

Type designation

Element

UK RoHS compliance

Out of scope
