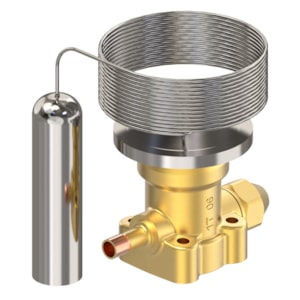

VAN TIẾT LƯU DANFOSS TE 5, R404A/R507A - C/N 067B3379

Gross weight

0.514 Kilogram

Net weight

0.457 Kilogram

Volume

1.721 Liter

EAN

5702428148962

Approval

EAC; LLC CDC TYSK

Body material

Brass

Capillary tube length [in]

118 in

Capillary tube length [mm]

3000 mm

China RoHS compliance

Yes

Equalization connection type

Solder, ODF

Equalization size [in]

1/4 in

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(c)

In scope of WEEE and contain batteries

No

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

400 psig

Packing format

Multi pack

Parts Program name

TE 5

Pressure equalization

Externally equalized

Product group

Expansion valves

Product Name Description

Element for expansion valve

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R404A/R507A

SCIP dossier no.

7a4717a2-7803-4273-9d94-59ccfb927c1e

SCIP dossier product name

TE

Temperature range [°C] [max]

20 °C

Temperature range [°C] [min]

-10 °C

Temperature range [°F] [max]

70 °F

Temperature range [°F] [min]

15 °F

Type

TE 5

Type designation

Element

UK RoHS compliance

Out of scope
