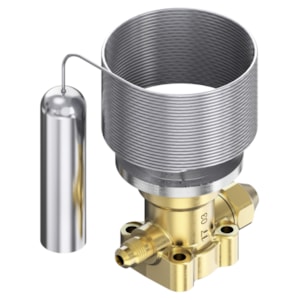

VAN TIẾT LƯU PHT, Element - C/N 067B3319

Gross weight

0.584 Kilogram

Net weight

0.488 Kilogram

Volume

1.663 Liter

EAN

5702428148306

Approval

EAC; LLC CDC TYSK

Body material

Brass

Capillary tube length [in]

197 in

Capillary tube length [mm]

5000 mm

China RoHS compliance

Out of scope

Equalization connection type

Flare

Equalization size [in]

1/4 in

EU RoHS compliance

Out of scope

In scope of WEEE and contain batteries

No

Max. Working Pressure [bar]

28 bar

Max. Working Pressure [psig]

400 psig

Packing format

Multi pack

Pressure equalization

Externally equalized

Product group

Expansion valves

Product Name Description

Element for expansion valve

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Refrigerants

R404A/R507A

Temperature range [°C] [max]

10 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

50 °F

Temperature range [°F] [min]

-40 °F

Type

PHT

Type designation

Element

UK RoHS compliance

Out of scope

Used for product

PHTS
