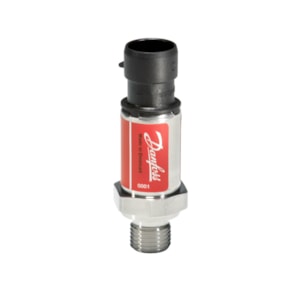

CẢM BIẾN ÁP SUẤT DANFOSS MBS 8250, -1 - 159bar, -14.5 - 2306.1psi - C/N 064G1136

Gross weight

0.06 Kilogram

Net weight

0.054 Kilogram

Volume

0.103 Liter

EAN

5702428927611

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy @ ref. temp. ±FS [%]

0.5 %

Ambient temperature range [°C] [max]

105 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

221 °F

Ambient temperature range [°F] [min]

-40 °F

CE evaluated

Yes

China RoHS compliance

Yes

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-20 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

-4 °F

Electrical conn. Male/Female

Male

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault Monitoring Demand

No

Identical product

064G4032

In scope of WEEE and contain batteries

No

International Article Number

5702428927611

Intrinsically safe

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-20 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-4 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Ratio metric

Overload pressure max. [bar]

960 bar

Overload pressure max. [psi]

13924 psi

Packing format

Multi pack

Pressure connection HEX [mm]

22 mm

Pressure connection size

7/16-20

Pressure connection standard

ISO 11926

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

159 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

2306.1 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

24 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Reference temperature [°C]

25 °C

Reference temperature [°F]

77 °F

Response time max. [ms]

1 ms

Specification key

MBS 8250-9716-C2BC08-1

Supply voltage [V] DC [max]

6 V

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

5 V

Supply voltage [V] DC [min]

4.5 V

TEB inside CTR ±FS [%]

1 %

Thermal shift HTR ±FS/10 K [%]

0.2 %

Thermal shift LTR ±FS/10 K [%]

0.2 %

Type

MBS 8250

UK RoHS compliance

Yes
