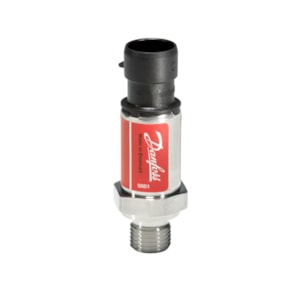

CẢM BIẾN ÁP SUẤT DANFOSS MBS 8250, -1 - 159bar, -14.5 - 2306.1psi - C/N 064G1132

Gross weight

0.064 Kilogram

Net weight

0.06 Kilogram

Volume

0.097 Liter

EAN

5702428904179

+ supply

Pin 2

- common

Pin 1

Accuracy @ ref. temp. ±FS [%]

0.5 %

Ambient temperature range [°C] [max]

105 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

221 °F

Ambient temperature range [°F] [min]

-40 °F

CE evaluated

Yes

China RoHS compliance

Yes

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-20 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

-4 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Round Packard Metri-Pack

Electrical connection size

3 pin

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Fault Monitoring Demand

No

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702428904179

Intrinsically safe

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

960 bar

Overload pressure max. [psi]

13924 psi

Packing format

Multi pack

Pressure connection HEX [mm]

22 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

159 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

2306.1 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

24 pc

REACH Candidate List substances

No

Reference temperature [°C]

25 °C

Reference temperature [°F]

77 °F

Response time max. [ms]

1 ms

Specification key

MBS 8250-9711-C2AC04-0

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

Supply voltage [V] DC [min]

9 V

TEB inside CTR ±FS [%]

1 %

Thermal shift HTR ±FS/10 K [%]

0.2 %

Thermal shift LTR ±FS/10 K [%]

0.2 %

Type

MBS 8250

UK RoHS compliance

Yes
