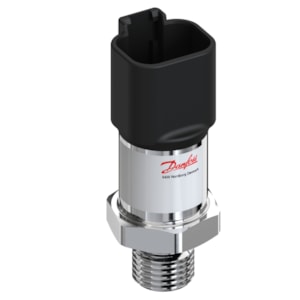

CẢM BIẾN ÁP SUẤT DANFOSS DST P650, 0 - 250bar, 0 - 3625psi - C/N 090G6022

Gross weight

0.062 Kilogram

Net weight

0.06 Kilogram

Volume

0.09 Liter

EAN

5702424593759

+ output

Pin 4

+ supply

Pin 2

- common

Pin 1

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

257 °F

Ambient temperature range [°F] [min]

-40 °F

Burst pressure [bar]

2500 bar

CE evaluated

Yes

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

Compensated temp. range [°F] [max]

257 °F

Compensated temp. range [°F] [min]

-40 °F

Country of origin

MADE IN GERMANY

Electrical conn. Male/Female

Male

Electrical connection

Deutsch DT04

Electrical connection size

4 pin

Enclosure rating IP

IP67

High Clipping Level

94

Identical product

090G7022

In scope of WEEE and contain batteries

No

International Article Number

5702424593759

Low Clipping level

6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Output signal

Ratio metric

Overload pressure max. [bar]

750 bar

Packing format

Multi pack

Pressure connection HEX [mm]

22 mm

Pressure connection size

1/4-A

Pressure connection standard

DIN 3852-E

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

24 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

RoHS compliant

Yes - RoHS ok

Specification key

DST P650-3416-C3GB041

Supply voltage [V] DC [max]

6 V

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

5 V

Supply voltage [V] DC [min]

4.5 V

Type

DST P650

UK RoHS compliance

Out of scope
