CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 120 - C/N 087U8015

Mã sản phẩm: 087U8015

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

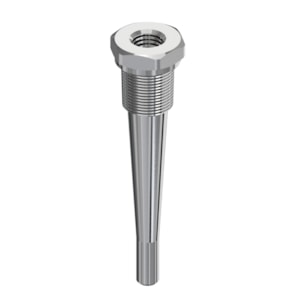

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 120 - C/N 087U8015

Product details

CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	AISI 316
Connection standard	ISO 228
Connection type	G
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE and contain batteries	No
Insertion length [in]	3.94 in
Insertion length [mm]	100 mm
Insertion type	Fixed
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	AISI 316
Process connection size	1/2
Process connection standard	ISO 228-1-A
Process connection type	G
Product group	Sensors
Product Name Description	Sensor pocket
Protection tube diameter [in] [max]	0.5 in
Protection tube diameter [in] [min]	0.354 in
Protection tube diameter [mm] [max]	12.7 mm
Protection tube diameter [mm] [min]	9 mm
Protection tube material	AISI 316L
Quantity per packing format	20 pc
REACH Candidate List substances	No
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 120
Type designation	MBT 120-780-100-3
UK RoHS compliance	Out of scope
Used for product	MBT 5111
