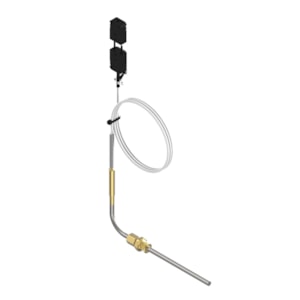

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5111, 150 mm, M,18x1.5, NONE - C/N 087U4247

Gross weight

0.252 Kilogram

Net weight

0.213 Kilogram

Volume

1.117 Liter

EAN

5702428516204

Ambient temperature max. [°C]

200 °C

Ambient temperature max. [°F]

392 °F

Cable length [in]

41.3 in

Cable length [m]

1.05 m

Cable tempr. range [°C] [max]

260 °C

Cable tempr. range [°C] [min]

-60 °C

Cable tempr. range [°F] [max]

500 °F

Cable tempr. range [°F] [min]

-76 °F

Cable type

PFA TC, screened

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

AISI 316L

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Plug S-KPI-HP

Electrical connection size

2 pin

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

5.9 in

Insertion length [mm]

150 mm

Insertion type

Variable

Output signal

mV

Packing format

Multi pack

Process connection material

AISI 316 L

Process connection size

18x1.5

Process connection standard

NONE

Process connection type

M

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

10 pc

Sensor element standard

EN 60584-2

Sensor element tolerance

Class 2

Sensor Insert

Fixed

Temperature range [°C] [max]

800 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

1472 °F

Temperature range [°F] [min]

-58 °F

Thermocouple

1 x NiCr-Ni, Type K

Thermocouple design std.

EN 61515

Thermocouple tolerance

EN 60584-2 Class 2

Type

MBT 5111

Type designation

-0201-0150-199--1-0100-402-000

UK RoHS compliance

Out of scope
