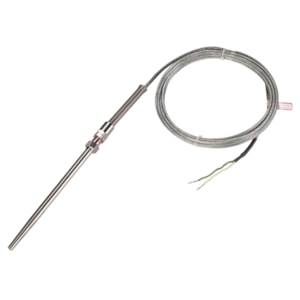

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5111, 30 mm, G,1/2, ANSI/ASME B1.20.1 -C/N 087U4230

Gross weight

0.403 Kilogram

Net weight

0.401 Kilogram

Volume

0.75 Liter

EAN

5702428930642

Ambient temperature max. [°C]

200 °C

Ambient temperature max. [°F]

392 °F

Cable length [in]

193 in

Cable length [m]

4.9 m

Cable tempr. range [°C] [max]

260 °C

Cable tempr. range [°C] [min]

-60 °C

Cable tempr. range [°F] [max]

500 °F

Cable tempr. range [°F] [min]

-76 °F

Cable type

PFA TC, screened

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

Brass

Connection standard

ANSI/ASME B1.20

Connection type

G

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

Extension length [in]

3.74 in

Extension length [mm]

95 mm

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

1.18 in

Insertion length [mm]

30 mm

Insertion type

Fixed

Output signal

mV

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Brass

Process connection size

1/2

Process connection standard

ANSI/ASME B1.20.1

Process connection type

G

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.236 in

Protection tube diameter [mm]

6 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

6992421c-ca63-4034-a839-d31715530d6d

Sensor element standard

EN 60584-2

Sensor element tolerance

Class 2

Sensor Insert

Fixed

Temperature range [°C] [max]

800 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

1472 °F

Temperature range [°F] [min]

-58 °F

Thermocouple

1 x NiCr-Ni, Type K

Thermocouple design std.

EN 61515

Thermocouple tolerance

EN 60584-2 Class 2

Type

MBT 5111

Type designation

00 MBT 5111-0100-0095-144-1; 01 -0490-002-0000

UK RoHS compliance

Out of scope
