CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 120 - C/N 087U4219

Mã sản phẩm: 087U4219

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 120 - C/N 087U4219

Product details

CE evaluated	Yes
China RoHS compliance	Out of scope
Connection type	G
EU RoHS compliance	Yes with exemptions
In scope of WEEE and contain batteries	No
Insertion length [in]	3.94 in
Insertion length [mm]	100 mm
Insertion type	Fixed
Internal connection size	1/4
Internal connection type	G
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	3/4
Process connection standard	ASME B1.1
Process connection type	G
Product group	Accessories, sensors

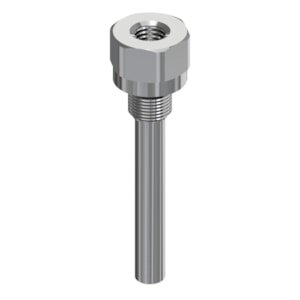

Product Name Description	Sensor pocket
Protection tube diameter [in]	0.236 in
Protection tube diameter [mm]	6 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	20 pc
REACH Candidate List substances	No
Temperature range [°C] [max]	800 °C
Temperature range [°C] [min]	0 °C
Temperature range [°F] [max]	1472 °F
Temperature range [°F] [min]	32 °F
Type	MBT 120
Type designation	MBT 120-800-100-4
UK RoHS compliance	Out of scope
Used for product	MBT 5114
