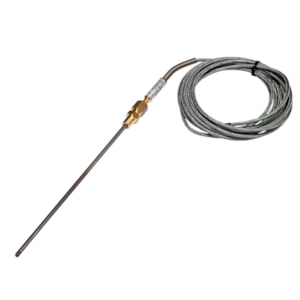

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5111, 100 mm - C/N 087U4193

Mã sản phẩm: 087U4193

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5111, 100 mm - C/N 087U4193

Product details

Ambient temperature max. [°C]	200 °C
Ambient temperature max. [°F]	392 °F
Cable length [in]	39.4 in
Cable length [m]	1 m
Cable tempr. range [°C] [max]	260 °C
Cable tempr. range [°C] [min]	-60 °C
Cable tempr. range [°F] [max]	500 °F
Cable tempr. range [°F] [min]	-76 °F
Cable type	PFA TC, screened
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Cable
Electrical connection size	2 wire
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	3.94 in
Insertion length [mm]	100 mm
Output signal	mV
Packing format	Multi pack
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.236 in
Protection tube diameter [mm]	6 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	6992421c-ca63-4034-a839-d31715530d6d
Sensor element standard	EN 60584-2
Sensor element tolerance	Class 2
Sensor Insert	Fixed
Temperature range [°C] [max]	800 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	1472 °F
Temperature range [°F] [min]	-58 °F
Thermocouple	1 x NiCr-Ni, Type K
Thermocouple design std.	EN 61515
Thermocouple tolerance	EN 60584-2 Class 2
Type	MBT 5111
Type designation	00 MBT 5111-0101-0100-000-1; 01 -0100-002-0000
UK RoHS compliance	Out of scope
