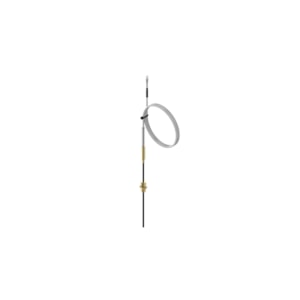

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5111, 130 mm, G,1/4, ISO 228-1-A - C/N 087U4188

Mã sản phẩm: 087U4188

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5111, 130 mm, G,1/4, ISO 228-1-A - C/N 087U4188

Product details

Ambient temperature max. [°C]	200 °C
Ambient temperature max. [°F]	392 °F
Cable length [in]	19.7 in
Cable length [m]	0.5 m
Cable type	PFA TC, screened, 260 °C
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
Connection material	Brass
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Cable
Electrical connection size	2 wire
Enclosure rating IP	IP65
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	5.1 in
Insertion length [mm]	130 mm
Insertion type	Fixed
Output signal	mV
Packing format	Multi pack
Process connection material	Brass
Process connection size	1/4
Process connection standard	ISO 228-1-A
Process connection type	G
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.177 in
Protection tube diameter [mm]	4.5 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	10 pc
Sensor element standard	EN 60584-2
Sensor element tolerance	Class 2
Sensor Insert	Fixed
Temperature range [°C] [max]	800 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	1472 °F
Temperature range [°F] [min]	-58 °F
Thermocouple	1 x NiCr-Ni, Type K
Type	MBT 5111
Type designation	00 MBT 5111-0000-0200-133-1; 01 -0050-001-0050
UK RoHS compliance	Out of scope
