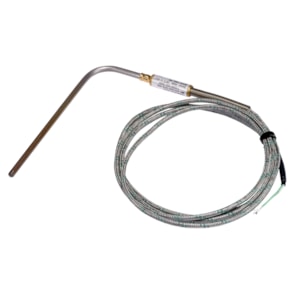

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5111, 175 mm - C/N087U4041

Gross weight

0.178 Kilogram

Net weight

0.17 Kilogram

Volume

0.683 Liter

EAN

5702423232956

Ambient temperature max. [°C]

200 °C

Ambient temperature max. [°F]

392 °F

Cable length [in]

79 in

Cable length [m]

2 m

Cable tempr. range [°C] [max]

260 °C

Cable tempr. range [°C] [min]

-60 °C

Cable tempr. range [°F] [max]

500 °F

Cable tempr. range [°F] [min]

-76 °F

Cable type

PFA TC, screened

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

Extension length [in]

8.5 in

Extension length [mm]

215 mm

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

6.9 in

Insertion length [mm]

175 mm

Output signal

mV

Packing format

Multi pack

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.236 in

Protection tube diameter [mm]

6 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

6992421c-ca63-4034-a839-d31715530d6d

Sensor element standard

EN 60584-2

Sensor element tolerance

Class 2

Sensor Insert

Fixed

Temperature range [°C] [max]

800 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

1472 °F

Temperature range [°F] [min]

-58 °F

Thermocouple

1 x NiCr-Ni, Type K

Thermocouple design std.

EN 61515

Thermocouple tolerance

EN 60584-2 Class 2

Type

MBT 5111

Type designation

00 MBT 5111-0101-0175-1; 01 -0250-002-0000

UK RoHS compliance

Out of scope
