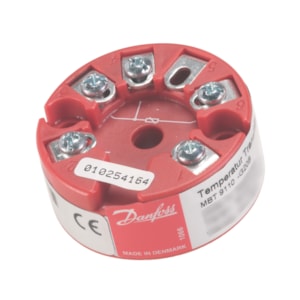

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 9110, 0 °C - 200 °C - C/N 084Z8140

Gross weight

0.071 Kilogram

Net weight

0.041 Kilogram

Volume

0.563 Liter

EAN

5702423097517

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Output 2 wire

Electrical connection size

2 terminals

Enclosure rating IP

IP00

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Product group

Sensors

Product Name Description

Temperature transmitter

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

a7fb0794-b56c-4e6a-a349-7871abc333d0

SCIP dossier product name

MBT 9110

Sensor elem. resistance [Ohm]

100

Sensor element [pc]

1 pc

Sensor element type

Pt

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [min]

8 V

Supply voltage [V] DC [min]

8 V

Temperature range [°C] [max]

850 °C

Temperature range [°C] [min]

-200 °C

Temperature range [°F] [max]

1562 °F

Temperature range [°F] [min]

-328 °F

Transmitter setting range [°C] [max]

200 °C

Transmitter setting range [°C] [min]

0 °C

Transmitter setting range [°F] [max]

392 °F

Transmitter setting range [°F] [min]

32 °F

Transmitter type

Standard

Type

MBT 9110

Type designation

MBT 9110-000B-G120

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21
