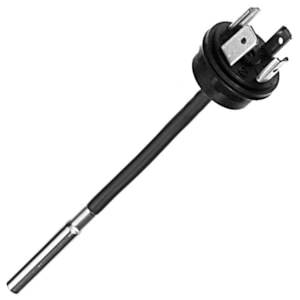

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 150, 80 mm, MBT 150-000-080-0 - C/N 084Z8072

Mã sản phẩm: 084Z8072

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 150, 80 mm, MBT 150-000-080-0 - C/N 084Z8072

Product details

CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Angular connector
Electrical connection size	4 pin
Electrical connection standard	EN 175301-803-A
Enclosure rating IP	IP00
EU RoHS compliance	Yes with exemptions
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	3.15 in
Insertion length [mm]	80 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal	Ohm
Packing format	Multi pack
Product group	Accessories, sensors
Product Name Description	Temperature sensor insert
Protection tube diameter [in]	0.236 in
Protection tube diameter [mm]	6 mm
Quantity per packing format	60 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 150
Type designation	MBT 150-000-080-0
UK RoHS compliance	Out of scope
Used for product	MBT 5250
Wires [pcs]	2 pc
