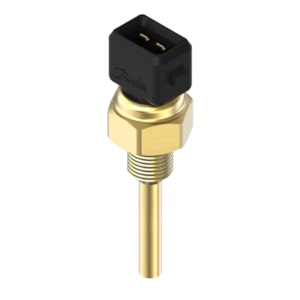

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 37 mm, M,10x1 - C/N 084Z7269

Mã sản phẩm: 084Z7269

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 37 mm, M,10x1 - C/N 084Z7269

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
Connection material	Brass
Connection type	M
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. comments	Integrated
Electrical connection	AMP Junior Power Timer
Electrical connection size	2 pin
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	1.46 in
Insertion length [mm]	37 mm
Insertion type	Fixed
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Brass
Process connection size	10x1
Process connection standard	ISO 965
Process connection type	M
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.197 in
Protection tube diameter [mm]	5 mm
Protection tube material	Brass
Quantity per packing format	40 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
Sensor elem. resistance [Ohm]	3000
Sensor element [pc]	1 pc
Sensor element tolerance	± 1%
Sensor element type	NTC
Sensor Insert	Fixed
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 3270
Type designation	MBT 3270-0A150-037-30300-000
UK RoHS compliance	Out of scope
Wires [pcs]	2 pc
