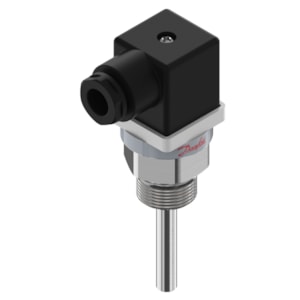

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 53 mm, G,1/2 - C/N 084Z7251

Gross weight

0.126 Kilogram

Net weight

0.124 Kilogram

Volume

0.123 Liter

EAN

5702423200252

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

Brass

Connection standard

ISO 228

Connection type

G

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

2.09 in

Insertion length [mm]

53 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Brass

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.256 in

Protection tube diameter [mm]

6.5 mm

Protection tube material

Brass

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

Sensor elem. resistance [Ohm]

130

Sensor element [pc]

1 pc

Sensor element tolerance

± 5 °C

Sensor element type

PTC

Sensor Insert

Fixed

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-58 °F

Type

MBT 3270

Type designation

MBT 3270-0F500-053-20600-000

UK RoHS compliance

Out of scope

Wires [pcs]

2 pc
