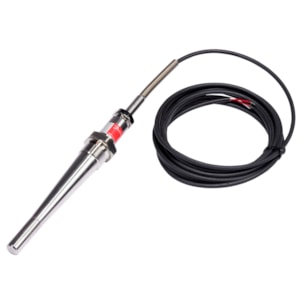

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5116, 70 mm, M,18x1.5, ISO 965 - C/N 084Z7092

Gross weight

0.432 Kilogram

Net weight

0.195 Kilogram

Volume

1.463 Liter

EAN

5702423202188

Ambient temperature max. [°C]

75 °C

Ambient temperature max. [°F]

167 °F

Cable length [in]

19.7 in

Cable length [m]

0.5 m

Cable tempr. range [°C] [max]

150 °C

Cable tempr. range [°C] [min]

-40 °C

Cable tempr. range [°F] [max]

302 °F

Cable tempr. range [°F] [min]

-40 °F

Cable type

Polyolefine, screened

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

AISI 316 Ti

Connection type

M

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Cable

Electrical connection size

3 wire

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

2.76 in

Insertion length [mm]

70 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

AISI 316 Ti

Process connection size

18x1.5

Process connection standard

ISO 965

Process connection type

M

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in] [max]

0.945 in

Protection tube diameter [in] [min]

0.551 in

Protection tube diameter [mm] [max]

24 mm

Protection tube diameter [mm] [min]

14 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

9 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a

Sensor elem. resistance [Ohm]

100

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Temperature range [°C] [max]

600 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

1112 °F

Temperature range [°F] [min]

-58 °F

Type

MBT 5116

Type designation

MBT 5116-C000-070-2013-500

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21

Wires [pcs]

2 pc
