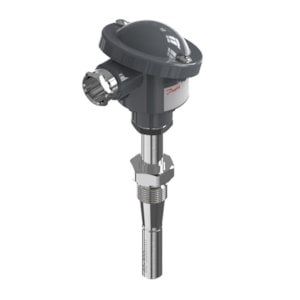

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5113, 80 mm, G,1/2, ISO 228-1-A - C/N 084Z7008

Gross weight

0.471 Kilogram

Net weight

0.466 Kilogram

Volume

0.842 Liter

EAN

5702423181292

Ambient temperature max. [°C]

90 °C

Ambient temperature max. [°F]

194 °F

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Type B

Electrical connection size

Pg 16

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

Extension length [in]

1.97 in

Extension length [mm]

50 mm

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

3.15 in

Insertion length [mm]

80 mm

Insertion type

Fixed

Number of terminals [pcs]

2 pc

Output signal

mV

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

AISI 316 Ti

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in] [max]

0.709 in

Protection tube diameter [in] [min]

0.551 in

Protection tube diameter [mm] [max]

18 mm

Protection tube diameter [mm] [min]

14 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

9 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

daa062e2-e8c0-4d66-a1fa-e3b4de3cda2a

Sensor element standard

EN 60584-2

Sensor element tolerance

Class 2

Sensor Insert

Exchangeable

Temperature range [°C] [max]

800 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

1472 °F

Temperature range [°F] [min]

-58 °F

Thermocouple

1 x NiCr-Ni, Type K

Thermocouple design std.

EN 61515

Thermocouple tolerance

EN 60584-2 Class 2

Type

MBT 5113

Type designation

MBT 5113-B001-080-00-0000

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21

Wires [pcs]

2 pc
