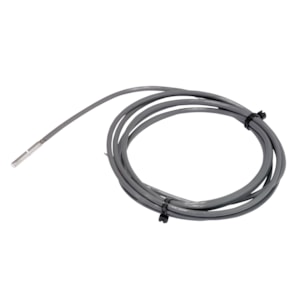

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 153, 3.000 m, Pt, 100 Ohm - C/N 084Z5295

Mã sản phẩm: 084Z5295

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 153, 3.000 m, Pt, 100 Ohm - C/N 084Z5295

Product details

Cable length [in]	118 in
Cable length [m]	3 m
Cable tempr. range [°C] [max]	200 °C
Cable tempr. range [°C] [min]	-80 °C
Cable tempr. range [°F] [max]	392 °F
Cable tempr. range [°F] [min]	-112 °F
Cable type	Teflon
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Cable
Electrical connection size	4 wire
Enclosure rating IP	IP68
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion type	Variable
Output signal	Ohm
Packing format	Multi pack
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.236 in
Protection tube diameter [mm]	6 mm
Protection tube material	AISI 305
Quantity per packing format	10 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	fdf4160e-1955-41c0-8584-16b48c4e3655
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	2 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 153
Type designation	MBT 153-4100-0300
UK RoHS compliance	Out of scope
Wires [pcs]	2 pc
