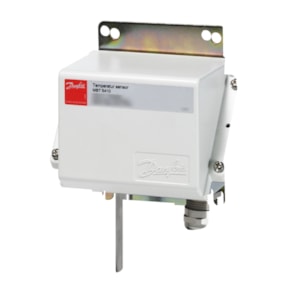

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5410, Pt - C/N 084Z5095

Mã sản phẩm: 084Z5095

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5410, Pt - C/N 084Z5095

Product details

Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Box (metal/plastic)
Electrical connection size	2 terminals
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	2.36 in
Insertion length [mm]	60 mm
Insertion type	Fixed
Number of terminals [pcs]	2 pc
Output signal	Ohm
Packing format	Multi pack
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.394 in
Protection tube diameter [mm]	10 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	8 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
Sensor elem. resistance [Ohm]	1000
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Exchangeable
Temperature range [°C] [max]	100 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	212 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 5410
Type designation	MBT 5410-020-060-000-0000
UK RoHS compliance	Yes with exemptions
UK RoHS exemption clause	12; 15; 18; 19; 21
Wires [pcs]	2 pc
