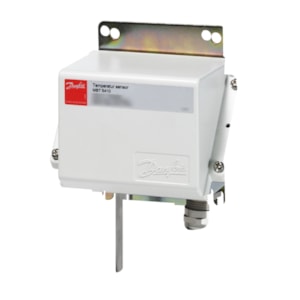

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5410, Pt - C/N 084Z5063

Gross weight

0.839 Kilogram

Net weight

0.765 Kilogram

Volume

2.514 Liter

EAN

5702423141630

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Box (metal/plastic)

Electrical connection size

2 terminals

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

2.36 in

Insertion length [mm]

60 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.394 in

Protection tube diameter [mm]

10 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

Sensor elem. resistance [Ohm]

100

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Exchangeable

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [min]

8 V

Supply voltage [V] DC [min]

8 V

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

50 °C

Transmitter setting range [°C] [min]

-50 °C

Transmitter setting range [°F] [max]

122 °F

Transmitter setting range [°F] [min]

-58 °F

Transmitter type

Standard

Type

MBT 5410

Type designation

MBT 5410-000-060-000-G405

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21

Wires [pcs]

2 pc
