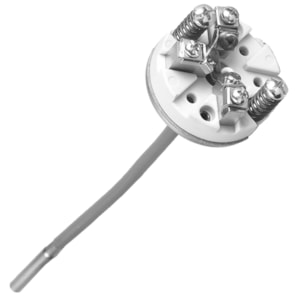

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 156, 300 mm, MBT 156-B01-300-0-0000 - C/N 084Z4336

Mã sản phẩm: 084Z4336

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 156, 300 mm, MBT 156-B01-300-0-0000 - C/N 084Z4336

Product details

CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Terminal block
Electrical connection size	3 terminals
Enclosure rating IP	IP00
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c) ; 7(a); 7(c)-I
Extension length [in]	1.97 in
Extension length [mm]	50 mm
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	11.81 in
Insertion length [mm]	300 mm
Insertion type	Fixed
Number of terminals [pcs]	3 pc
Output signal	Ohm
Packing format	Multi pack
Product group	Accessories, sensors
Product Name Description	Temperature sensor insert
Protection tube diameter [in]	0.315 in
Protection tube diameter [mm]	8 mm
Quantity per packing format	20 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1) Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Temperature range [°C] [max]	600 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	1112 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 156
Type designation	MBT 156-B01-300-0-0000
UK RoHS compliance	Out of scope
Used for product	MBT 5116
Wires [pcs]	2 pc
