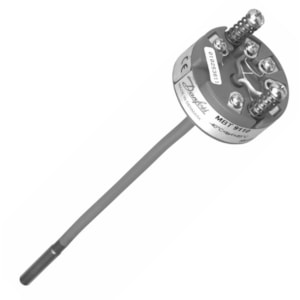

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 152, 150 mm, MBT 152-001-0150-00-G110 - C/N 084Z4311

Gross weight

0.076 Kilogram

Net weight

0.052 Kilogram

Volume

0.599 Liter

EAN

5702423163403

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Cable

Electrical connection size

2 wire

Enclosure rating IP

IP00

EU RoHS compliance

Yes with exemptions

Extension length [in]

1.97 in

Extension length [mm]

50 mm

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

5.91 in

Insertion length [mm]

150 mm

Insertion type

Fixed

Number of terminals [pcs]

3 pc

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Product group

Accessories, sensors

Product Name Description

Temperature sensor insert

Protection tube diameter [in]

0.236 in

Protection tube diameter [mm]

6 mm

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)
Dodecamethylcyclohexasiloxane (D6, CAS no. 540-97-6)

Sensor elem. resistance [Ohm]

100

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [min]

8 V

Supply voltage [V] DC [min]

8 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

100 °C

Transmitter setting range [°C] [min]

0 °C

Transmitter setting range [°F] [max]

212 °F

Transmitter setting range [°F] [min]

32 °F

Transmitter type

Standard

Type

MBT 152

Type designation

MBT 152-001-0150-00-G110

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21

Used for product

MBT 5252

Wires [pcs]

2 pc
