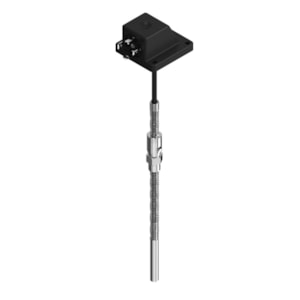

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5310, 50 mm, M,12x1 - C/N 084Z4218

Gross weight

0.498 Kilogram

Net weight

0.487 Kilogram

Volume

1.62 Liter

EAN

5702428046442

Ambient temperature max. [°C]

150 °C

Ambient temperature max. [°F]

302 °F

Cable length [in]

393.7 in

Cable length [m]

10 m

Cable tempr. range [°C] [max]

150 °C

Cable tempr. range [°C] [min]

-40 °C

Cable type

Polyolefine, screened

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

Stainless steel

Connection type

M

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Cable

Electrical connection size

3 wire

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

1.97 in

Insertion length [mm]

50 mm

Insertion type

Variable

Output signal

Ohm

Packing format

Multi pack

Process connection material

Stainless steel

Process connection size

12x1

Process connection standard

ISO 965

Process connection type

M

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.315 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

4 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

7e8c0ff3-1e7a-4680-b92c-bfbffbb08416

Sensor elem. resistance [Ohm]

100

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-40 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-40 °F

Type

MBT 5310

Type designation

MBT 5310-00-400-1402-1000

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21

Wires [pcs]

3 pc
