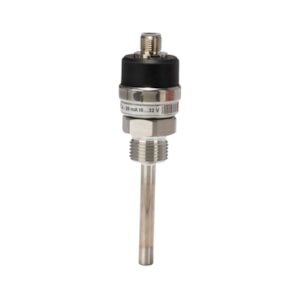

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3560, 68 mm, UNF,3/4-16 - C/N 084Z4104

Gross weight

0.176 Kilogram

Net weight

0.129 Kilogram

Volume

0.506 Liter

EAN

5702423267019

Ambient temperature max. [°C]

85 °C

Ambient temperature max. [°F]

185 °F

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

Stainless steel

Connection standard

ISO 228

Connection type

UNF

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

No

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

2.68 in

Insertion length [mm]

68 mm

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Process connection material

Stainless steel

Process connection size

3/4-16

Process connection standard

ASME B1.1

Process connection type

UNF

Product group

Sensors

Product Name Description

Temperature transmitter

Protection tube diameter [in]

0.31 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

13 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

8127e7d9-3431-4421-a02a-bab746bc2e4f

SCIP dossier product name

Sensor MBT 3560

Sensor elem. resistance [Ohm]

1000

Sensor element tolerance

± 1% FS

Sensor element type

Pt

Sensor Insert

Fixed

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

10 V

Supply voltage [V] DC [min]

10 V

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Transmitter setting range [°C] [max]

150 °C

Transmitter setting range [°C] [min]

-40 °C

Transmitter setting range [°F] [max]

302 °F

Transmitter setting range [°F] [min]

-40 °F

Transmitter type

Integrated

Type

MBT 3560

Type designation

MBT 3560-0000-0068-6A-815

UK RoHS compliance

Yes
