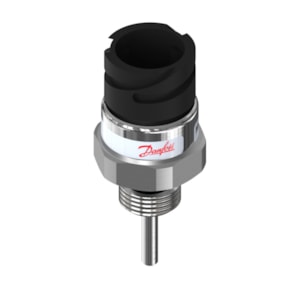

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 30 mm, M,16x1.5 - C/N 084Z3274

Mã sản phẩm: 084Z3274

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 30 mm, M,16x1.5 - C/N 084Z3274

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
Connection material	AISI 316 Ti
Connection type	M
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	M12 x 1
Electrical connection size	4 pin
Electrical connection standard	IEC 61076-2-101
Enclosure rating IP	IP54
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	1.18 in
Insertion length [mm]	30 mm
Insertion type	Fixed
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	AISI 316 Ti
Process connection size	16x1.5
Process connection standard	ISO 965
Process connection type	M
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.17 in
Protection tube diameter [mm]	4.2 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	40 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
Sensor elem. resistance [Ohm]	2020
Sensor element [pc]	1 pc
Sensor element tolerance	± 1%
Sensor element type	NTC
Sensor Insert	Fixed
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 3270
Type designation	MBT 3270-06162-030-50F00-000
UK RoHS compliance	Out of scope
Wires [pcs]	2 pc
