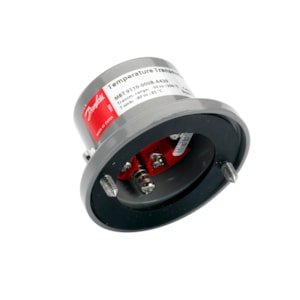

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 9110, 0 °C - 160 °C - C/N 084Z3155

Mã sản phẩm: 084Z3155

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 9110, 0 °C - 160 °C - C/N 084Z3155

Product details

Ambient temperature max. [°C]	85 °C
Ambient temperature max. [°F]	185 °F
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
EEE category	5 small equipment (any external dimension 50 cm)
Electrical connection	Output 2 wire
Electrical connection size	2 terminals
Enclosure rating IP	IP54
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion type	Fixed
Output signal [mA] [max]	20 mA
Output signal [mA] [min]	4 mA
Packing format	Multi pack
Product group	Sensors
Product Name Description	Temperature transmitter
Quantity per packing format	12 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	6992421c-ca63-4034-a839-d31715530d6d
SCIP dossier product name	MBT 5111/5114
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element type	Pt
Supply voltage [V] DC [max]	30 V
Supply voltage [V] DC [max]	30 V
Supply voltage [V] DC [min]	8 V
Supply voltage [V] DC [min]	8 V
Temperature range [°C] [max]	850 °C
Temperature range [°C] [min]	-200 °C
Temperature range [°F] [max]	1562 °F
Temperature range [°F] [min]	-328 °F
Thermocouple	N/A
Transmitter setting range [°C] [max]	160 °C
Transmitter setting range [°C] [min]	0 °C
Transmitter setting range [°F] [max]	320 °F
Transmitter setting range [°F] [min]	32 °F
Transmitter type	Standard EEx, high lid
Type	MBT 9110
Type designation	MBT 9110-000B-J116
UK RoHS compliance	Yes with exemptions
UK RoHS exemption clause	12; 15; 18; 19; 21
