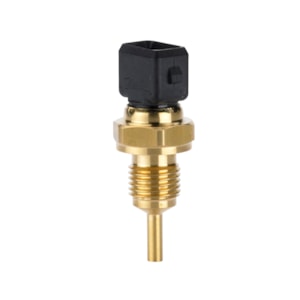

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 28 mm, G,1/4 - C/N 084Z3098

Mã sản phẩm: 084Z3098

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 28 mm, G,1/4 - C/N 084Z3098

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
CE evaluated	Yes
Connection material	Brass
Connection standard	DIN 3852-E (ISO 228)
Connection type	G
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. comments	Integrated
Electrical connection	AMP Junior Power Timer
Electrical connection size	2 pin
Enclosure rating IP	IP65
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	1.1 in
Insertion length [mm]	28 mm
Insertion type	Fixed
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Brass
Process connection notes	DIN 3852-E
Process connection size	1/4
Process connection standard	ISO 228-1-A
Process connection type	G
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.12 in
Protection tube diameter [mm]	3 mm
Protection tube material	Brass
Quantity per packing format	40 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
Sensor elem. resistance [Ohm]	1000
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Fixed
Temperature range [°C] [max]	150 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	302 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 3270
Type designation	MBT 3270-02000-028-C0300-000
Wires [pcs]	2 pc
