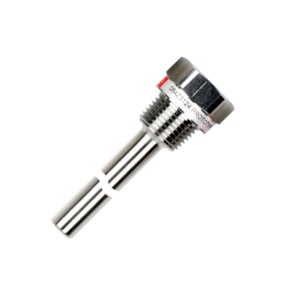

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 120 - C/N 084Z3053

Mã sản phẩm: 084Z3053

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 120 - C/N 084Z3053

Product details

CE evaluated	Yes
China RoHS compliance	Out of scope
Connection material	AISI 316 Ti
Connection standard	ANSI/ASME B1.20
Connection type	NPT
EEE category	5 small equipment (any external dimension 50 cm)
EU RoHS compliance	Yes with exemptions
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	3.94 in
Insertion length [mm]	100 mm
Insertion type	Fixed
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	AISI 316 Ti
Process connection size	1/2-14
Process connection standard	ANSI/ASME B1.20.1
Process connection type	NPT
Product group	Accessories, sensors
Product Name Description	Sensor pocket
Protection tube diameter [in]	0.43 in
Protection tube diameter [mm]	11 mm
Protection tube material	AISI 316 Ti
Quantity per packing format	40 pc
REACH Candidate List substances	No
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 120
Type designation	MBT 120-630-100-8
UK RoHS compliance	Out of scope
Used for product	MBT 3560, MBT 5560
