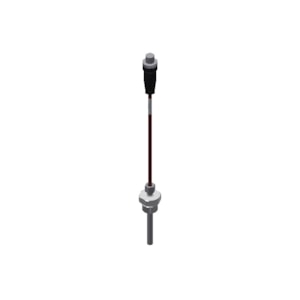

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 70 mm, G,1/2 - C/N 084Z3047

Gross weight

0.132 Kilogram

Net weight

0.13 Kilogram

Volume

0.36 Liter

EAN

5702423219223

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

Cable length [in]

15.75 in

Cable length [m]

0.4 m

Cable tempr. range [°C] [max]

200 °C

Cable tempr. range [°C] [min]

-60 °C

Cable tempr. range [°F] [max]

392 °F

Cable tempr. range [°F] [min]

-76 °F

Cable type

Silicone

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

AISI 316 Ti

Connection standard

ISO 228

Connection type

G

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP54

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in]

2.76 in

Insertion length [mm]

70 mm

Insertion type

Fixed

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

AISI 316 Ti

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.31 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

100 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

4562dfd6-7b4b-4298-811a-8ce9624f4579

Sensor elem. resistance [Ohm]

3000

Sensor element [pc]

1 pc

Sensor element tolerance

± 0.2°C from 0°C

Sensor element type

NTC

Sensor Insert

Exchangeable

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

-58 °F

Type

MBT 3270

Type designation

MBT 3270-0A459-070-21901-040

UK RoHS compliance

Out of scope

Wires [pcs]

2 pc
