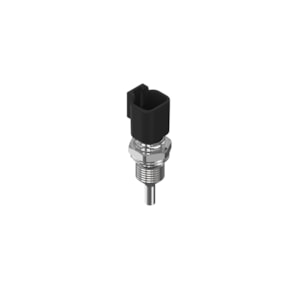

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 28 mm, M,14x1.5 - C/N 084Z2415

Mã sản phẩm: 084Z2415

Thương hiệu: Danfoss

Giá thị trường: 1 đ

Tiết kiệm: 0 đ (0%)

Giá bán: 1 đ

Số lượng:

Đặt hàng qua điện thoại: Mr Thịnh - 0918808005 / 0937250579

Hoặc gửi email: thinhhh79@gmail.com

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 3270, 28 mm, M,14x1.5 - C/N 084Z2415

Product details

Ambient temperature max. [°C]	125 °C
Ambient temperature max. [°F]	257 °F
Cable type	N/A
CE evaluated	Yes
China RoHS compliance	Yes exceed limitations
Connection material	AISI 316
Connection type	M
EEE category	5 small equipment (any external dimension 50 cm)
Electrical conn. comments	Integrated
Electrical connection	Deutsch DT04
Electrical connection size	2 pin
Enclosure rating IP	IP67
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a); 6(b); 6(c); 7(a); 7(c)-I
In scope of WEEE	Yes
In scope of WEEE and contain batteries	No
Insertion length [in]	1.1 in
Insertion length [mm]	28 mm
Insertion type	Fixed
Output signal	Ohm
Packing format	Multi pack
Process connection Male/Female	Male
Process connection material	Stainless steel
Process connection size	14x1.5
Process connection type	M
Product group	Sensors
Product Name Description	Temperature sensor
Protection tube diameter [in]	0.19 in
Protection tube diameter [mm]	5 mm
Protection tube material	AISI 303
Quantity per packing format	40 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
SCIP dossier no.	4562dfd6-7b4b-4298-811a-8ce9624f4579
Sensor elem. resistance [Ohm]	100
Sensor element [pc]	1 pc
Sensor element standard	EN 60751
Sensor element tolerance	Class B
Sensor element type	Pt
Sensor Insert	Fixed
Temperature range [°C] [max]	200 °C
Temperature range [°C] [min]	-50 °C
Temperature range [°F] [max]	392 °F
Temperature range [°F] [min]	-58 °F
Type	MBT 3270
Type designation	MBT 3270-10001-028-B0C00-000
UK RoHS compliance	Out of scope
Wires [pcs]	2 pc
