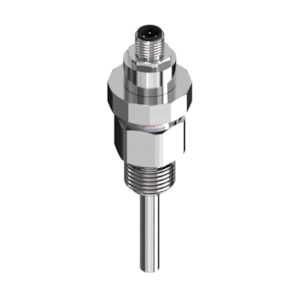

CẢM BIẾN NHIỆT ĐỘ DANFOSS MBT 5310, 293 mm - 305 mm, G,1/2 - C/N 084Z2225

Gross weight

0.257 Kilogram

Net weight

0.247 Kilogram

Volume

0.231 Liter

EAN

5702428814737

Ambient temperature max. [°C]

125 °C

Ambient temperature max. [°F]

257 °F

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

Connection material

Stainless steel

Connection standard

IEC 947-5-2

Connection type

G

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

4 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP65

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion length [in] [max]

12.01 in

Insertion length [in] [min]

11.54 in

Insertion length [mm] [max]

305 mm

Insertion length [mm] [min]

293 mm

Insertion type

Variable

Number of terminals [pcs]

4 pc

Output signal

Ohm

Packing format

Multi pack

Process connection Male/Female

Male

Process connection material

Stainless steel

Process connection size

1/2

Process connection standard

ISO 228-1-A

Process connection type

G

Product group

Sensors

Product Name Description

Temperature sensor

Protection tube diameter [in]

0.31 in

Protection tube diameter [mm]

8 mm

Protection tube material

AISI 316 Ti

Quantity per packing format

20 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

7e8c0ff3-1e7a-4680-b92c-bfbffbb08416

Sensor elem. resistance [Ohm]

100

Sensor element [pc]

1 pc

Sensor element standard

EN 60751

Sensor element tolerance

Class B

Sensor element type

Pt

Sensor Insert

Fixed

Temperature range [°C] [max]

200 °C

Temperature range [°C] [min]

-50 °C

Temperature range [°F] [max]

392 °F

Temperature range [°F] [min]

-58 °F

Type

MBT 5310

Type designation

MBT 5310-00-305-B00

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21

Wires [pcs]

4 pc
