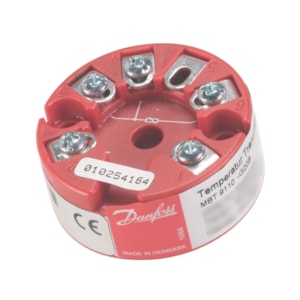

CẢM BIẾT NHIỆT ĐỘ DANFOSS MBT 9110, 0 °C - 650 °C - C/N 084Z2032

Gross weight

0.074 Kilogram

Net weight

0.043 Kilogram

Volume

0.556 Liter

EAN

5702423288236

Ambient temperature max. [°C]

60 °C

Ambient temperature max. [°F]

140 °F

CE evaluated

Yes

China RoHS compliance

Yes exceed limitations

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Output 2 wire

Electrical connection size

2 terminals

Enclosure rating IP

IP00

EU RoHS compliance

Yes with exemptions

EU RoHS exemption clause

6(a); 6(b); 6(c); 7(a); 7(c)-I

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

Insertion type

Fixed

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Packing format

Multi pack

Product group

Sensors

Product Name Description

Temperature transmitter

Quantity per packing format

12 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

SCIP dossier no.

6992421c-ca63-4034-a839-d31715530d6d

SCIP dossier product name

MBT 5111/5114

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [max]

35 V

Supply voltage [V] DC [min]

7 V

Supply voltage [V] DC [min]

7.2 V

Temperature range [°C] [max]

1372 °C

Temperature range [°C] [min]

-180 °C

Temperature range [°F] [max]

2500 °F

Temperature range [°F] [min]

-292 °F

Thermocouple

1 x NiCr-Ni, Type K

Transmitter setting range [°C] [max]

650 °C

Transmitter setting range [°C] [min]

0 °C

Transmitter setting range [°F] [max]

1202 °F

Transmitter setting range [°F] [min]

32 °F

Transmitter type

Galv. isolated

Type

MBT 9110

Type designation

MBT 9110-005A-H165

UK RoHS compliance

Yes with exemptions

UK RoHS exemption clause

12; 15; 18; 19; 21
