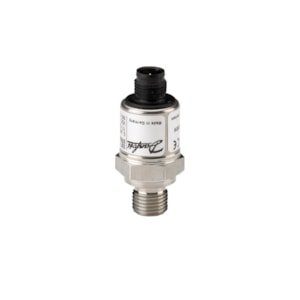

CẢM BIẾN ÁP SUẤT DANFOSS DST P92C (DST P92C-5036-1-Z-EA-BD11), 0 - 400bar, 0 - 5800psi - C/N 078G6014

Gross weight

0.057 Kilogram

Net weight

0.052 Kilogram

Volume

0.109 Liter

EAN

5702428047326

+ supply

Pin 2

- common

Pin 3

Accuracy TEB [-25 - 80°C] ±FS

1.5 %

Accuracy TEB [-40 - 80°C] ±FS

2.5 %

Accuracy TEB [0 - 80°C] ±FS

1 %

Bitrate kBit/sec

125

Burst pressure [bar]

4000 bar

Burst pressure [psig]

58000 psig

BUS Pin High (+)

Pin 4

BUS Pin Low (-)

Pin 5

CE evaluated

Yes

China RoHS compliance

Out of scope

Electrical conn. comments

PBT

Electrical conn. Male/Female

Male

Electrical connection

M12 x 1

Electrical connection size

5 pin

Electrical connection standard

IEC 61076-2-101

Enclosure rating IP

IP67

In scope of WEEE and contain batteries

No

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-104 °F

Node ID

1

Output signal

CAN-open

Overload pressure max. [bar]

800 bar

Overload pressure max. [psig]

11603 psig

Packing format

Multi pack

Pressure connection HEX [mm]

22 mm

Pressure connection size

9/16-18

Pressure connection standard

SAE 6

Pressure connection type

UNF

Pressure Male/Female

Male

Pressure range [bar] [max]

400 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

5800 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

45 pc

REACH Candidate List substances

No

Response time max. [ms]

1 ms

Shield Pin

Pin 1

Specification key

DST P92C-5036-1-Z-EA-BD11

Start up time [ms]

40 ms

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

Supply voltage [V] DC [min]

9 V

Type

DST P92C
