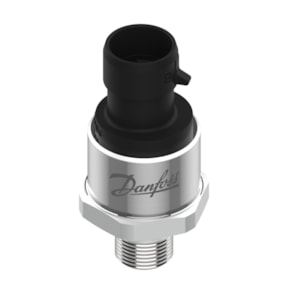

CẢM BIẾN ÁP SUẤT DANFOSS DST P140 (DST P140-1811-C2GB04-1), 0 - 6bar, 0 - 87psi - C/N 075G4052

Gross weight

0.07 Kilogram

Net weight

0.058 Kilogram

EAN

5702424063702

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

-40 °C

Electrical connection

Metri-Pack 150 Series

Electrical connection size

3 pin

Electrical connection standard

NONE

Electrical Connector Color

Black

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

Fault signal level

21.5

High Clipping Level

20.5

Housing material

304L

Identical product

075G1074

In scope of WEEE and contain batteries

No

International Article Number

5702424063702

Low Clipping level

3.8

Medium temperature range [°C] [max]

100 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

24 bar

Overload pressure max. [psi]

348 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-A

Pressure connection standard

ISO 1179-2

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

6 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

87 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Gauge (relative)

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

60 pc

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P140-1811-C2GB04-1

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

8 V

Supply voltage [V] DC [min]

8 V

TEB inside CTR ±FS [%]

3 %

Type

DST P140

UK RoHS compliance

Out of scope

Wetted part material

304L/316L
