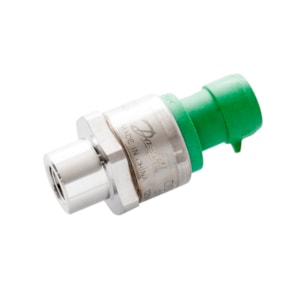

CẢM BIẾN ÁP SUẤT DANFOSS DST P110 (DST P110-2036-LBBF08-0), 0 - 10bar, 0 - 145psi - C/N 075G4001

Gross weight

0.074 Kilogram

Net weight

0.062 Kilogram

Volume

0.086 Liter

EAN

5702428558723

+ output

Pin C

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

Compensated temp. range [°C] [max]

120 °C

Compensated temp. range [°C] [min]

-40 °C

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Metri-Pack 150 Series

Electrical connection size

3 pin

Electrical connection standard

NONE

Electrical Connector Color

Green

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

Fault signal level

2

High Clipping Level

99

Housing material

304L

Identical product

075G1012

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702428558723

Low Clipping level

4

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Ratio metric

Overload pressure max. [bar]

40 bar

Overload pressure max. [psi]

580 psi

Packing format

Industrial pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J513 45° flare

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

10 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

145 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

60 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-2036-LBBF08-0

Supply voltage [V] DC

5 V

Supply voltage [V] DC

5 V

TEB inside CTR ±FS [%]

3 %

Type

DST P110

UK RoHS compliance

Out of scope

Wetted part material

304L 316L
