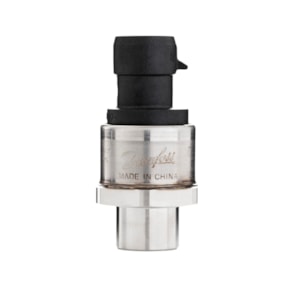

CẢM BIẾN ÁP SUẤT DANFOSS DST P110 (DST P110-2736-C2BF08-0), 0 - 50bar, 0 - 725psi - C/N 075G1020

Gross weight

0.07 Kilogram

Net weight

0.062 Kilogram

Volume

0.083 Liter

EAN

5702428543385

+ output

Pin C

+ supply

Pin B

- common

Pin A

Ambient temperature range [°C] [max]

125 °C

Ambient temperature range [°C] [min]

-40 °C

CE evaluated

Yes

Compensated temp. range [°C] [max]

125 °C

Compensated temp. range [°C] [min]

-40 °C

EEE category

5 small equipment (any external dimension 50 cm)

Electrical connection

Metri-Pack 150 Series

Electrical connection size

3 pin

Electrical connection standard

NONE

Electrical Connector Color

Black

Enclosure rating IP

IP69K

EU RoHS compliance

Yes

Fault signal level

2

High Clipping Level

99

Housing material

304L

Identical product

075G4009

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702428543385

Low Clipping level

4

Medium temperature range [°C] [max]

135 °C

Medium temperature range [°C] [min]

-40 °C

Output signal

Ratio metric

Overload pressure max. [bar]

200 bar

Overload pressure max. [psi]

2900 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

7/16-20

Pressure connection standard

SAE J513 45° flare

Pressure connection type

UNF

Pressure Male/Female

Female

Pressure range [bar] [max]

50 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

725 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

64 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

No

Response time max. [ms]

2 ms

Specification key

DST P110-2736-C2BF08-0

Supply voltage [V] DC

5 V

Supply voltage [V] DC

5 V

TEB inside CTR ±FS [%]

3 %

Type

DST P110

UK RoHS compliance

Out of scope

Wetted part material

304L 316L
