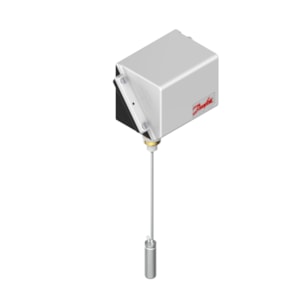

CÔNG TẮC NHIỆT ĐỘ DANFOSS CAS1080 - C/N 060L502066

Gross weight

1.116 Kilogram

Net weight

1.06 Kilogram

Volume

5.228 Liter

EAN

5702423151790

Alarm Signal

Rising

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-32 °F

Approval

ABS ; BV ; CCC ; CE ; DNV ; EAC ; GL ; LLC CDC EURO-TYSK ; LR ; LVD ; NKK ; RINA ; RMRS ; RoHS ; RoHS China ; TYSK ; UKCA

CE evaluated

Yes

Charge type

Adsorption

China RoHS compliance

Yes

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT

Contact rating

AC14=0.1 A, 220 V; AC15=0.1 A, 220 V; DC13=12 W, 125 V

Differential (FS) [K]

3 K

Differential type

Fixed (max. value)

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

Enclosure rating IP

IP67

EU RoHS compliance

Out of scope

Factory setting type

Dedicated

In scope of WEEE and contain batteries

No

Max. sensor temperature [°C]

220 °C

Max. sensor temperature [°F]

428 °F

Packing format

Multi pack

Parts included

Sensor pocket

Product accessories

Switches accessories

Product description

Thermostat

Product group

Switches and thermostats

Product Name Description

Thermostat

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

84be8326-1b95-4f87-afb0-90ae08b65f06

Sensor pocket conn. length[mm]

75 mm

Sensor pocket conn. size

3/4

Sensor pocket conn. type

G

Sensor pocket length min. [in]

7 7/8 in

Sensor pocket length min. [mm]

200 mm

Sensor pocket material

Brass

Sensor size (Ø x L) [in]

1/2 x 2 1/2 in

Sensor size (Ø x L) [mm]

13 x 63 mm

Sensor type

Rigid sensor

Serviceable

No

Temperature range [°C] [max]

120 °C

Temperature range [°C] [min]

70 °C

Temperature range [°F] [max]

248 °F

Temperature range [°F] [min]

158 °F

Type

CAS1080

UK RoHS compliance

Out of scope
