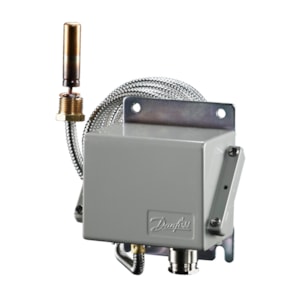

CÔNG TẮC NHIỆT ĐÔ DANFOSS CAS181 - C/N 060L315566

Gross weight

1.208 Kilogram

Net weight

1.148 Kilogram

Volume

3.697 Liter

EAN

5702423148035

Ambient temperature range [°C] [max]

70 °C

Ambient temperature range [°C] [min]

-25 °C

Ambient temperature range [°F] [max]

158 °F

Ambient temperature range [°F] [min]

-32 °F

Approval

ABS ; BV ; CCC ; CE ; DNV ; EAC ; GL ; LLC CDC EURO-TYSK ; LR ; LVD ; NKK ; RINA ; RMRS ; RoHS ; RoHS China ; TYSK ; UKCA

Armoring

Yes

Cap. tube length fraction [in]

78 3/4 in

Capillary tube length [mm]

2000 mm

CE evaluated

Yes

Charge type

Adsorption

China RoHS compliance

Yes

Connection for pocket or hose

M 18 x 1.5

Contact function

SPDT

Contact rating

AC15=0.1 A, 220 V; DC13=12 W, 125 V

Diff. @ Min. range setting [K]

2.5 K

Diff. @ Min. range setting[°C]

2.5 °C

Diff. @ Min. range setting[°F]

2.5 °F

Differential (FS) [K]

2.5 K

Differential type

Fixed

Electrical conn. comments

Metal cable gland

Electrical conn. Male/Female

Female

Electrical connection

Screwed cable entry

Electrical connection size

Pg 13.5

Electrical connection standard

DIN 40430

Electrical spec. standard

EN 60947-4/-5

Enclosure rating IP

IP67

EU RoHS compliance

Out of scope

In scope of WEEE and contain batteries

No

Max. sensor temperature [°C]

250 °C

Max. sensor temperature [°F]

482 °F

Packing format

Multi pack

Parts included

Gasket set

Product accessories

Switches accessories

Product description

Thermostat

Product group

Switches and thermostats

Product Name Description

Thermostat

Quantity per packing format

10 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Reset function

Auto

SCIP dossier no.

84be8326-1b95-4f87-afb0-90ae08b65f06

Sensor pocket length min. [in]

3 in

Sensor pocket length min. [mm]

75 mm

Sensor size (Ø x L) [in]

1/2 x 2 1/2 in

Sensor size (Ø x L) [mm]

13 x 63 mm

Sensor type

Remote bulb

Serviceable

No

Temperature range [°C] [max]

150 °C

Temperature range [°C] [min]

60 °C

Temperature range [°F] [max]

302 °F

Temperature range [°F] [min]

140 °F

Type

CAS181

UK RoHS compliance

Out of scope
