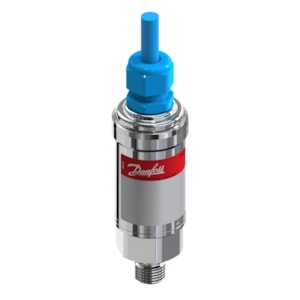

CẢM BIẾN ÁP SUẤT DANFOSS MBS 4251,(MBS 4251-3431-DCGB04-1) 0 - 250bar, 0- 3625psi - C/N 060G6760

Gross weight

0.489 Kilogram

Net weight

0.453 Kilogram

Volume

1.281 Liter

EAN

5702428542951

+ supply

Black 1

- common

Black 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Approval

ATEX

Autofrettage Pressure

1500 bar

Cable length [in]

196 in

Cable length [m]

5 m

China RoHS compliance

Yes

Comments

MEDIUM TEMP. MIN -20°C VITON

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. comments

Screened Ex

Electrical connection

Cable

Enclosure rating IP

IP67

EU RoHS compliance

Yes

EU RoHS exemption clause

No

EX Sales text

Ex iA IIC T5..T4 Ga/Gb

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702428542951

Intrinsically safe

Yes

Low Clipping level

3.6

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

1500 bar

Overload pressure max. [psi]

21756 psi

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection notes

M5

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E; ISO 1179-2 (Form E)

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

250 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

3625 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

8 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 4251-3431-DCGB04-1

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [max]

28 V

Supply voltage [V] DC [min]

10 V

Supply voltage [V] DC [min]

10 V

Type

MBS 4251

UK RoHS compliance

Yes
