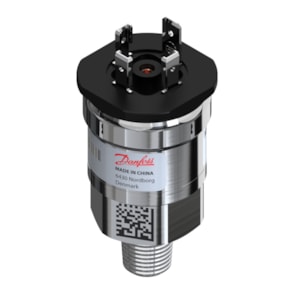

CẢM BIẾN ÁP SUẤT DANFOSS AKS 2050, -1 - 159bar, -14.5- 2306psi - C/N 060G6344

Gross weight

0.143 Kilogram

Net weight

0.126 Kilogram

Volume

0.26 Liter

EAN

5702428885799

+ output

Pin 3

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

85 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

185 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX; cUR

Approval comments

ATEX Ex ec IIA T4 Gc

Approval standard

E227388; E31024

Autofrettage Pressure

500 bar

China RoHS compliance

Out of scope

Compensated temp. range [°C] [max]

80 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

176 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male

Electrical connection

Angular connector

Electrical connection size

4 pin

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Out of scope

Flush diaphragm

No

High Clipping Level

98

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702428885799

Intrinsically safe

No

Low Clipping level

4

Medium temperature range [°C] [max]

85 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

185 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Ratio metric

Overload pressure max. [bar]

954 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4-18

Pressure connection standard

ANSI/ASME B1.20.1

Pressure connection type

NPT

Pressure Male/Female

Male

Pressure range [bar] [max]

159 bar

Pressure range [bar] [min]

-1 bar

Pressure range [psi] [max]

2306 psi

Pressure range [psi] [min]

-14.5 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

Yes

Quantity per packing format

20 pc

Ratiometric of Vsupply [%] [max]

90 %

Ratiometric of Vsupply [%] [min]

10 %

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

AKS 2050-9736-A0EC04-0

Supply voltage [V] DC [max]

6 V

Supply voltage [V] DC [max]

5.5 V

Supply voltage [V] DC [min]

5 V

Supply voltage [V] DC [min]

4.5 V

Type

AKS 2050

UK RoHS compliance

Out of scope
