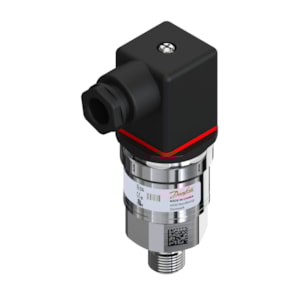

CẢM BIẾN ÁP SUẤT DANFOSS MBS 3200, 0- 40bar, 0- 580psi - C/N 060G6281

Gross weight

0.17 Kilogram

Net weight

0.156 Kilogram

Volume

0.408 Liter

EAN

5702428846103

+ supply

Pin 1

- common

Pin 2

Accuracy, max. [±FS%]

1 %

Accuracy, typical [±FS%]

0.5 %

Adj. zero point and span

No

Ambient temperature range [°C] [max]

100 °C

Ambient temperature range [°C] [min]

-40 °C

Ambient temperature range [°F] [max]

212 °F

Ambient temperature range [°F] [min]

-40 °F

Approval

ATEX

Approval comments

ATEX Ex ec IIA T4 Gc

China RoHS compliance

Yes

Compensated temp. range [°C] [max]

100 °C

Compensated temp. range [°C] [min]

0 °C

Compensated temp. range [°F] [max]

212 °F

Compensated temp. range [°F] [min]

32 °F

EEE category

5 small equipment (any external dimension 50 cm)

Electrical conn. Male/Female

Male and Female

Electrical connection

Angular connector

Electrical connection size

Pg 9

Electrical connection standard

EN 175301-803-A

Enclosure rating IP

IP65

EU RoHS compliance

Yes

EU RoHS exemption clause

No

Flush diaphragm

No

High Clipping Level

22.4

In scope of WEEE

Yes

In scope of WEEE and contain batteries

No

International Article Number

5702428846103

Intrinsically safe

No

Low Clipping level

3.6

Medium temperature range [°C] [max]

125 °C

Medium temperature range [°C] [min]

-40 °C

Medium temperature range [°F] [max]

257 °F

Medium temperature range [°F] [min]

-40 °F

Non-linearity BFSL [±FS%]

0.2 %

Output signal

Current

Output signal [mA] [max]

20 mA

Output signal [mA] [min]

4 mA

Overload pressure max. [bar]

100 bar

Packing format

Multi pack

Pressure connection HEX [mm]

27 mm

Pressure connection size

1/4

Pressure connection standard

DIN 3852-E; ISO 1179-2 (Form E)

Pressure connection type

G

Pressure Male/Female

Male

Pressure range [bar] [max]

40 bar

Pressure range [bar] [min]

0 bar

Pressure range [psi] [max]

580 psi

Pressure range [psi] [min]

0 psi

Pressure reference

Sealed gauge

Product group

Sensors

Product Name Description

Pressure transmitter

Pulse-snubber

No

Quantity per packing format

14 pc

REACH Candidate List substances

Lead (CAS no. 7439-92-1)

Response time max. [ms]

4 ms

SCIP dossier no.

16d2efc6-64f3-4a4e-ae98-a3fd7ce0218d

SCIP dossier product name

AKS/MBS

Specification key

MBS 3200-2631-A1GB04-1

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [max]

32 V

Supply voltage [V] DC [min]

9 V

Supply voltage [V] DC [min]

9 V

Type

MBS 3200

UK RoHS compliance

Yes
